In this post, I will build a neural network to predict the binding affinity between peptides and MHC Class II alleles, utilizing embeddings extracted from the Evolutionary Scale Modeling 2 (ESM2) protein large language model (LLM).
Why is this important?
We will use datasets from Therapeutics Data Commons (TDC), a large-scale data repository for machine learning projects.
# Access the MHC2_IEDB_Jensen data from TDC API and obtain splitted data
from tdc.multi_pred import PeptideMHC
data = PeptideMHC(name = "MHC2_IEDB_Jensen")
split = data.get_split(method = "random", seed = 524, frac = [0.7, 0.1, 0.2])
train_df, valid_df, test_df = split['train'], split['valid'], split['test']# Save the files to drive
import os
save_path = './data'
os.makedirs(save_path, exist_ok=True)
train_df.to_feather(os.path.join(save_path, 'train_dat.feather'))
valid_df.to_feather(os.path.join(save_path, 'valid_dat.feather'))
test_df.to_feather(os.path.join(save_path, 'test_dat.feather'))Let’s examine the structure and distribution of our data.
# how many data points in each data set
print(f"Number of data points in the training set: {len(train_df)}")
print(f"Number of data points in the validation set: {len(valid_df)}")
print(f"Number of data points in the test set: {len(test_df)}")Output:
Number of data points in the training set: 93997
Number of data points in the validation set: 13428
Number of data points in the test set: 26856A quick look at the training data reveals the structure: Peptide sequence, MHC sequence (pseudo-sequence), and the binding affinity Y.
# quick look at the train data structure
train_df.head()| Peptide | MHC | Y | MHC_ID | |
|---|---|---|---|---|
| 0 | PKYVKQNTLKLAT | YAFFMF… | 0.000000 | HLA-DPA10103-DPB10201 |
| 1 | AAAAGWQTLSAALDA | YAFFMF… | 0.238910 | HLA-DPA10103-DPB10201 |
| 2 | AALDAQAVELTARLN | YAFFMF… | 0.357937 | HLA-DPA10103-DPB10201 |
| 3 | ADLGYGPATPAAPAA | YAFFMF… | 0.285795 | HLA-DPA10103-DPB10201 |
| 4 | AGSYAADLGYGPATP | YAFFMF… | 0.108843 | HLA-DPA10103-DPB10201 |

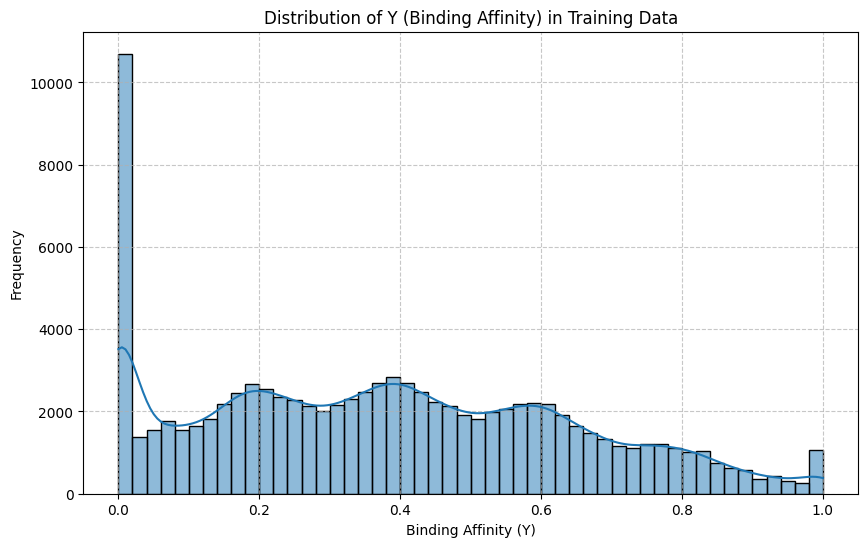

We can visualize the distribution of the target variable Y (binding affinity) in the training set.
# look at the distribution of Y in training data
import matplotlib.pyplot as plt
import seaborn as sns
plt.figure(figsize=(10, 6))
sns.histplot(train_df['Y'], bins=50, kde=True)
plt.title('Distribution of Y (Binding Affinity) in Training Data')
plt.xlabel('Binding Affinity (Y)')
plt.ylabel('Frequency')
plt.grid(True, linestyle='--', alpha=0.7)
plt.show()
The Y values represent normalized binding affinity between the peptides and the MHC II, with higher values representing higher affinities. We can see from the distribution that many pairs have no affinity (Y = 0), while others have variable levels of affinity.
# How many unique MHC_ID and peptides are there?
unique_mhc = train_df['MHC_ID'].nunique()
unique_peptides = train_df['Peptide'].nunique()
print(f'Number of unique MHC_IDs in training set: {unique_mhc}')
print(f'Number of unique peptides in training set: {unique_peptides}')Output:
Number of unique MHC_IDs in training set: 79
Number of unique peptides in training set: 14597We can also look at the distribution of MHC types in our training data.

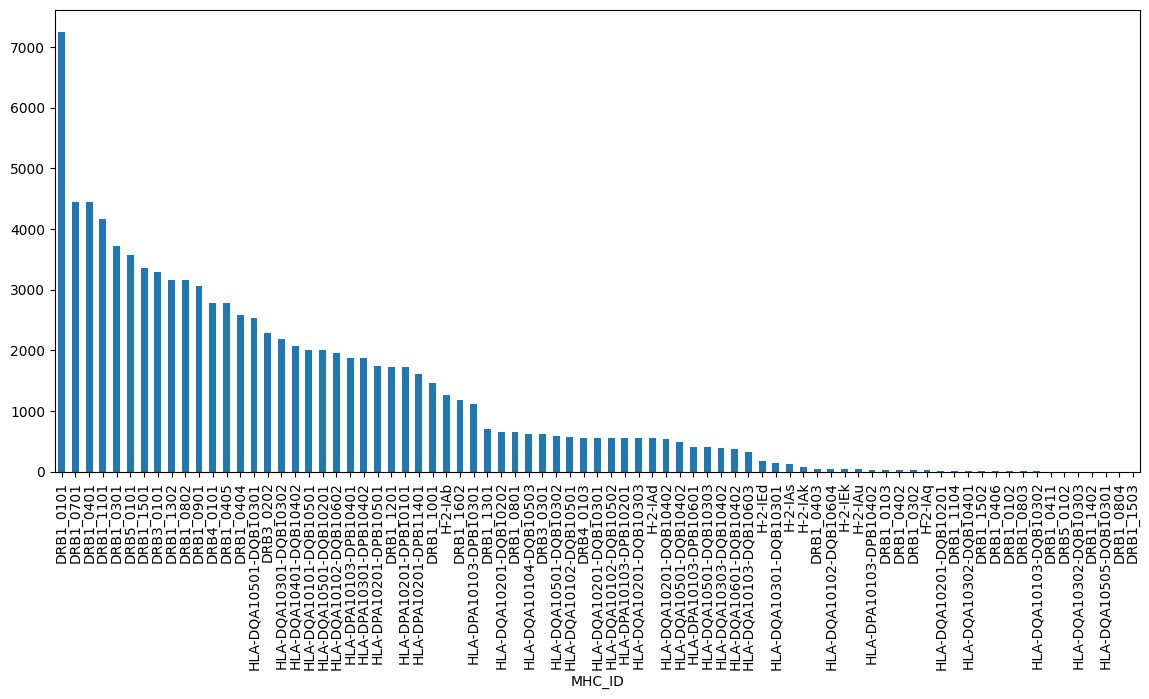

# plot barplot of instances per MHC2 molecule
plt.figure(figsize=(14, 6))
train_df["MHC_ID"].value_counts().sort_values(ascending = False).plot(kind = 'bar')
Some MHCs have many peptide binding data points, while others have only a few. In the next session, we will remove low instance MHC data so that the prediction model has sufficient training data.
To represent the protein sequences for our neural network, we will use ESM-2 (Evolutionary Scale Modeling), a state-of-the-art protein language model. We’ll use the 150M parameter version (esm2_t30_150M_UR50D), which has 640 embedding dimensions.
# Only keep MHC_ID that has >= 1000 instances in train data, so that the model has sufficient training data
n_data = train_df["MHC_ID"].value_counts()
keep_mhc_id = n_data[n_data >= 1000].index.tolist()
train_df = train_df[train_df["MHC_ID"].isin(keep_mhc_id)].reset_index(drop=True)
valid_df = valid_df[valid_df["MHC_ID"].isin(keep_mhc_id)].reset_index(drop=True)
test_df = test_df[test_df["MHC_ID"].isin(keep_mhc_id)].reset_index(drop=True)# How many data points in each data set
print(f"Number of data points in the training set: {len(train_df)}")
print(f"Number of data points in the validation set: {len(valid_df)}")
print(f"Number of data points in the test set: {len(test_df)}")Output:
Number of data points in the training set: 82388
Number of data points in the validation set: 11702
Number of data points in the test set: 23410from transformers import AutoTokenizer, EsmModel
# model checkpoints can be seen here: https://github.com/facebookresearch/esm#available-models-and-datasets-
# the one we use has medium complexity and has 640 dimensions
model_checkpoint = "facebook/esm2_t30_150M_UR50D"
tokenizer = AutoTokenizer.from_pretrained(model_checkpoint)
model = EsmModel.from_pretrained(model_checkpoint)A note to LLM model selection for this specific task: I’ve tried larger ESM2 model with 1280 or 2560 embedding dimensions, and they did not improve the accuracy of binding prediction. As peptides and MHC lengths are quite short, it is possible that the 640 dimension model has already saturated learnable information for this task.
# Write a function to extract mean embeddings for protein sequences
# GPU will significantly speed up the process
# This is memory intensive, so we will batch the iteration
import numpy as np
from transformers import AutoTokenizer, EsmModel
import torch
import math
from tqdm import tqdm
import pandas as pd
def extract_mean_embedding(
sequence: list[str],
tokenizer: AutoTokenizer,
model: EsmModel,
device: torch.device | None = None,
batch_size: int = 64
) -> pd.DataFrame:
"""Extract mean embeddings for peptide sequences from a LLM model."""
# Use GPU when available
if not device:
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
# Separate sequence list into batches
n_batches = math.ceil(len(sequence) / batch_size)
all_batch_embeddings = []
model = model.to(device) # Move model to the target device
model.eval() # Set model to evaluation mode
steps = tqdm(range(n_batches))
for i in steps:
steps.set_description(f"Processing batch {i+1}/{n_batches}")
start = i * batch_size
end = (i + 1) * batch_size
batch = sequence[start:end]
# Tokenize peptide sequence and pad to equal length
inputs = tokenizer(batch, return_tensors="pt", padding=True)
# Move input to the target device
inputs = {name: tensor.to(device) for name, tensor in inputs.items()}
# Forward pass through the model without gradient tracking to get mean embeddings
with torch.no_grad():
batch_mean_embeddings = model(**inputs).last_hidden_state.mean(dim=1).detach().cpu().numpy()
all_batch_embeddings.append(batch_mean_embeddings)
embeddings = pd.DataFrame(np.vstack(all_batch_embeddings))
embeddings.columns = [f"me_{i + 1}" for i in range(embeddings.shape[1])]
return embeddingsThe ESM2 model returns a sequence of embeddings for each token in the input sequence. We take the mean of these embeddings to get a single embedding for the entire sequence. It is also possible to keep the sequence of embeddings for each token, and use other methods to aggregate the embeddings, such as max pooling or attention pooling, or train a 1D Convolutional Neural Network (CNN) to learn the optimal way to aggregate the embeddings. In this case, we will keep the mean embeddings for each sequence.
# Put all peptide/MHC data into a dictionary
sequence_dict = {
"train_pt": train_df['Peptide'].tolist(),
"valid_pt": valid_df['Peptide'].tolist(),
"test_pt": test_df['Peptide'].tolist(),
"train_mhc": train_df['MHC'].tolist(),
"valid_mhc": valid_df['MHC'].tolist(),
"test_mhc": test_df['MHC'].tolist()
}

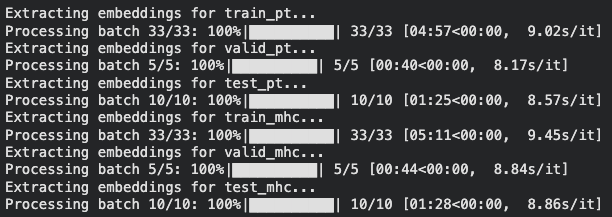

# Extract embeddings for all peptide/MHC data
embedding_dict = {}
for data, sequence in sequence_dict.items():
print(f"Extracting embeddings for {data}...")
embedding_dict[data] = extract_mean_embedding(sequence, tokenizer, model, batch_size=2560)
There are other, more complex ways to combine embeddings from two interacting entities, but for this task, we will use the simple approach of concatenating the embeddings.
# Modify column names to add peptide/MHC prefix
for key, me in embedding_dict.items():
me.columns = [f"{key.split('_')[1]}_{col}" for col in me.columns]
# Concatenate peptide and MHC mean embeddings and name columns
train_me = pd.concat([train_df[['Peptide', 'MHC_ID', 'Y']],
embedding_dict['train_pt'],
embedding_dict['train_mhc']], axis=1)
valid_me = pd.concat([valid_df[['Peptide', 'MHC_ID', 'Y']],
embedding_dict['valid_pt'],
embedding_dict['valid_mhc']], axis=1)
test_me = pd.concat([test_df[['Peptide', 'MHC_ID', 'Y']],
embedding_dict['test_pt'],
embedding_dict['test_mhc']], axis=1)
# Save data as feather files
model_cp = str(model.name_or_path).replace('/', '_')
df_list = [(train_me, 'train_me'), (valid_me, 'valid_me'), (test_me, 'test_me')]
save_path = './data'
for df, df_name in df_list:
df.to_feather(os.path.join(save_path, f'{model_cp}_{df_name}.feather'))Let’s visualize the embeddings using t-SNE to see if there are any patterns in the data.

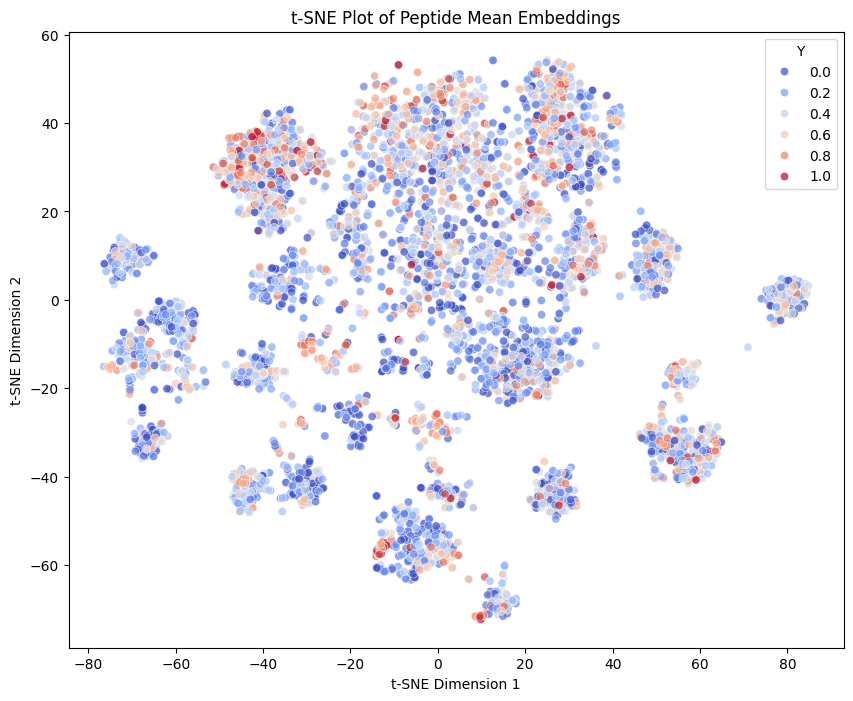

# Plot t-SNE of sampled peptide-MHC mean embeddings
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.manifold import TSNE
sampled_index = train_me.sample(n=5000, random_state=1).index # sample 5000 data points for visualization
X_embedded = TSNE(n_components=2, learning_rate='auto',
init='random', perplexity=30).fit_transform(train_me.loc[sampled_index])
plt.figure(figsize=(10, 8))
plt.scatter(X_embedded[:, 0], X_embedded[:, 1], alpha=0.5, s=2)
plt.title('t-SNE of Peptide-MHC Embeddings')
plt.show()
In the above t-SNE plot, we can see some cluster structures correlating with higher Y, indicating that the embeddings encode information relating to peptide-MHC affinity.
We will build a MLP that takes the concatenated peptide and MHC embeddings as input, and outputs the predicted affinity.
We convert our extracted embeddings and labels into TensorFlow datasets.
# Convert data to Tensorflow dataset
import tensorflow as tf
import pandas as pd
# Compile all feature columns (peptide and MHC embeddings) into a single NumPy array for each dataset
X_train = train_me.filter(regex=f"^pt|^mhc").values
y_train = train_me['Y'].values
X_valid = valid_me.filter(regex=f"^pt|^mhc").values
y_valid = valid_me['Y'].values
X_test = test_me.filter(regex=f"^pt|^mhc").values
y_test = test_me['Y'].values
# Create tf.data.Dataset from these concatenated arrays
train_tfds = tf.data.Dataset.from_tensor_slices((X_train, y_train))
# Shuffle, batch and prefetch the tfds
train_tfds = train_tfds.shuffle(1024, seed=42).batch(32).prefetch(1)
valid_tfds = tf.data.Dataset.from_tensor_slices((X_valid, y_valid))
valid_tfds = valid_tfds.batch(32).prefetch(1)The model consists of dense layers with varying dropout rates to prevent overfitting.
# Define MLP layers
# Define a helper function for the repetitive dense -> batch norm -> dropout block
def make_dense_block(n_neurons, dropout_rate=0.2):
return tf.keras.Sequential([
tf.keras.layers.Dense(n_neurons, activation='relu', kernel_initializer='he_normal'),
tf.keras.layers.BatchNormalization(),
tf.keras.layers.Dropout(dropout_rate)
])
tf.random.set_seed(42)
norm_layer = tf.keras.layers.Normalization(input_shape=X_train.shape[1:])
dnn_model = tf.keras.Sequential([
norm_layer,
make_dense_block(300),
make_dense_block(300),
make_dense_block(300),
make_dense_block(300),
make_dense_block(300),
tf.keras.layers.Dense(1)
])

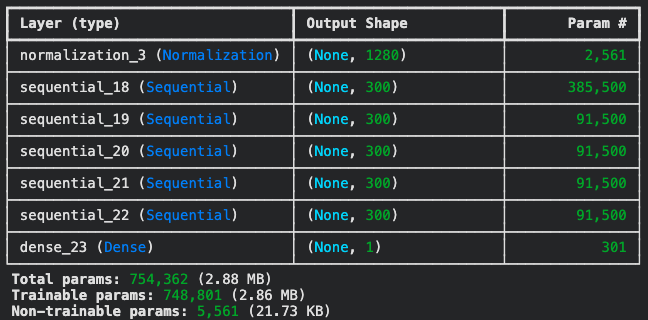

dnn_model.summary()
Here I am using a MLP of 5 layers, with batch normalization and dropout after each layer to control for overfitting.
I used performance scheduling to make sure that the model converges to a good solution. I also used early stopping to further prevent overfitting.
# Performance scheduling of learning rate
lr_scheduler = tf.keras.callbacks.ReduceLROnPlateau(factor=0.5, patience=5)
# Early stopping
early_stopping = tf.keras.callbacks.EarlyStopping(patience=10, restore_best_weights=True)optimizer = tf.keras.optimizers.Adam(learning_rate=1e-4)
dnn_model.compile(loss='mse', optimizer=optimizer, metrics=['RootMeanSquaredError', 'R2Score'])
# Adapt the normalization layer using only the feature tensors from the dataset
norm_layer.adapt(train_tfds.map(lambda x, y: x))
tf.random.set_seed(42)

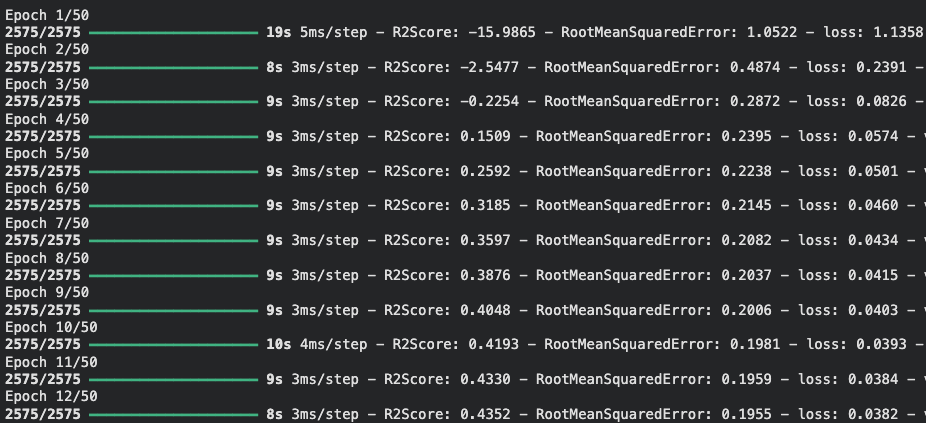

fit_history = dnn_model.fit(train_tfds, epochs=50, validation_data=valid_tfds,
callbacks=[lr_scheduler, early_stopping])

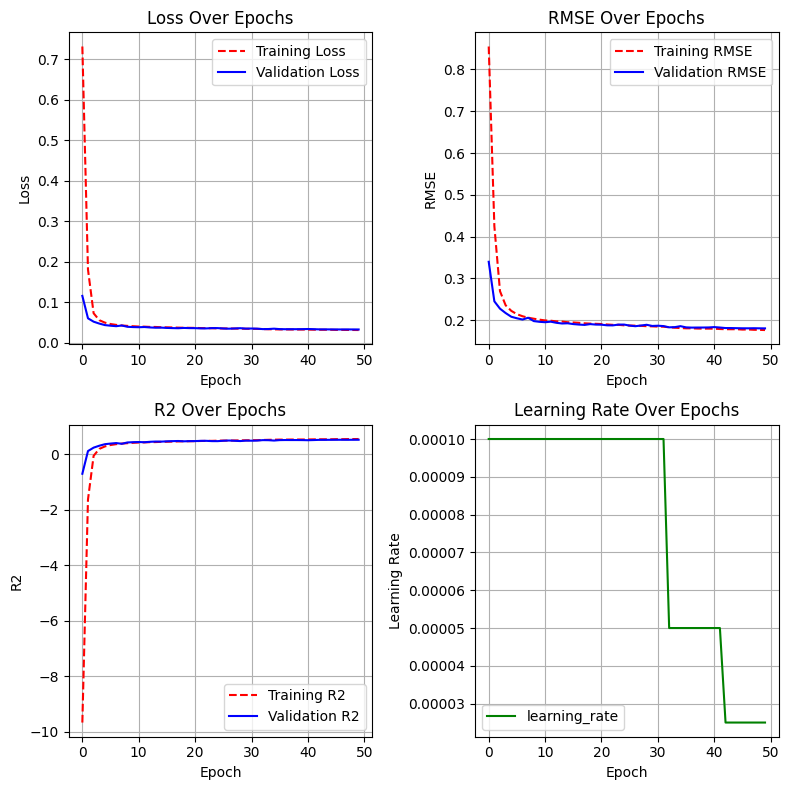

Let’s analyze the training performance over epochs.
# Plot train and validation loss and RMSE across epochs
import matplotlib.pyplot as plt
fig, ax = plt.subplots(nrows=2, ncols=2, figsize=(8, 8))
pd.DataFrame(fit_history.history)[['loss', 'val_loss']].plot(
grid=True, xlabel="Epoch", ax=ax[0, 0],
style=["r--", "b-"])
pd.DataFrame(fit_history.history)[['RootMeanSquaredError', 'val_RootMeanSquaredError']].plot(
grid=True, xlabel="Epoch", ax=ax[0, 1],
style=["r--", "b-"])
pd.DataFrame(fit_history.history)[['R2Score', 'val_R2Score']].plot(
grid=True, xlabel="Epoch", ax=ax[1, 0],
style=["r--", "b-"])
pd.DataFrame(fit_history.history)[['learning_rate']].plot(
grid=True, xlabel="Epoch", ax=ax[1, 1],
style=["g-"])
ax[0, 0].set_ylabel('Loss')
ax[0, 0].set_title('Loss Over Epochs')
ax[0, 0].legend(['Training Loss', 'Validation Loss'])
ax[0, 1].set_ylabel('RMSE')
ax[0, 1].set_title('RMSE Over Epochs')
ax[0, 1].legend(['Training RMSE', 'Validation RMSE'])
ax[1, 0].set_ylabel('R2')
ax[1, 0].set_title('R2 Over Epochs')
ax[1, 0].legend(['Training R2', 'Validation R2'])
ax[1, 1].set_ylabel('Learning Rate')
ax[1, 1].set_title('Learning Rate Over Epochs')
plt.tight_layout()
plt.show()
As we can see, validation loss and errors have been kept very close to that of training, and they eventually dropped down to very similar levels, suggesting that the model did not overfit.

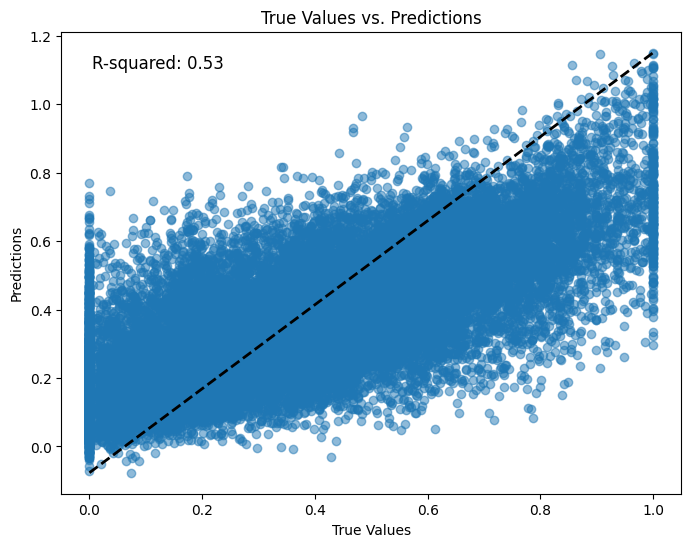

Finally, we evaluate the model on the training and test set.

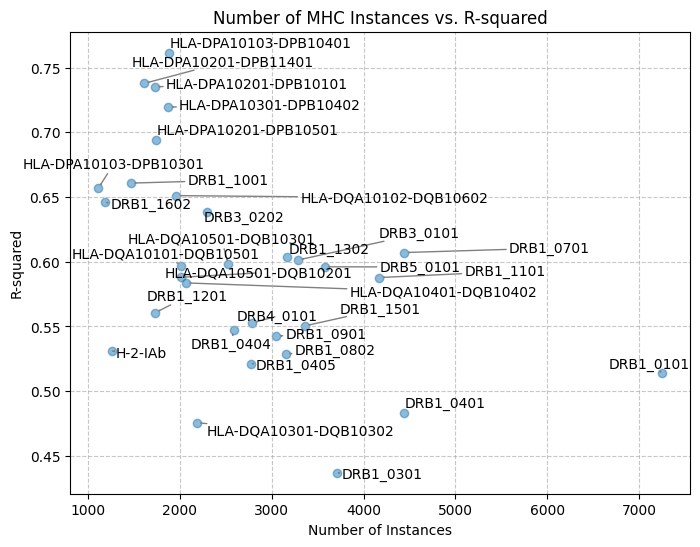

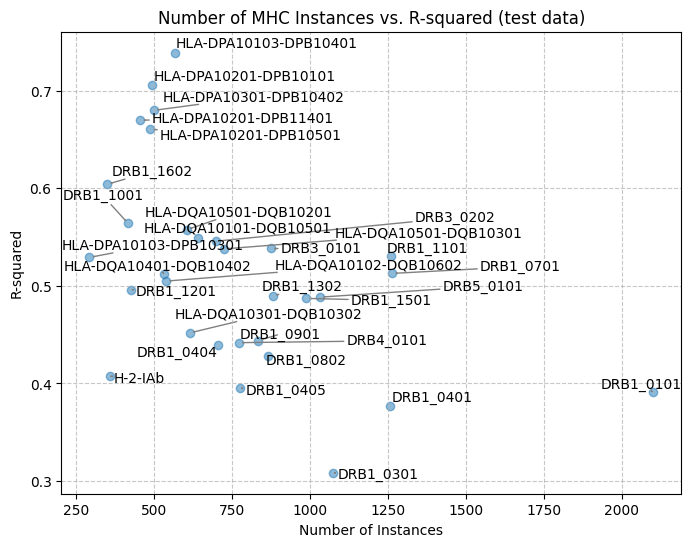

# Evaluate R-squared of predicted vs actual binding affinity for each MHC type
from sklearn.metrics import r2_score
y_pred = dnn_model.predict(X_train)
y_true = y_train
mhc_id = train_me['MHC_ID'].values
r2_df = pd.DataFrame({'MHC_ID': mhc_id, 'Y': y_true, 'Y_pred': y_pred.flatten()})
# remove MHC_ID <= 10 instances
r2_df = r2_df.groupby('MHC_ID').filter(lambda x: len(x) > 10)
# Calculate R2 and MHC instances
mhc_n = r2_df['MHC_ID'].value_counts()
r2_by_mhc = r2_df.groupby('MHC_ID').apply(lambda x: r2_score(x['Y'], x['Y_pred']))
# Join statistics by MHC_ID
r2_df = pd.concat([mhc_n, r2_by_mhc], axis=1)
r2_df.columns = ['n', 'r2']
r2_df.sort_values(by='r2', ascending=False, inplace=True)# Plot MHC instance vs prediction accuracy scatter plot
plt.figure(figsize=(8, 6))
plt.scatter(r2_df['n'], r2_df['r2'], alpha=0.5)
from adjustText import adjust_text
texts = [plt.text(r2_df['n'].iloc[i], r2_df['r2'].iloc[i], r2_df.index[i]) for i in range(len(r2_df))]
adjust_text(
texts, expand=(1.1, 1.1), arrowprops=dict(arrowstyle="->", color="grey")
)
plt.xlabel('Number of Instances')
plt.ylabel('R-squared')
plt.title('Number of MHC Instances vs. R-squared')
plt.grid(True, linestyle='--', alpha=0.7)
plt.show()
This plot reveals two key findings: (1) Prediction accuracy does not correlate with the number of MHC instances, suggesting that the model’s performance is driven more by the intrinsic biochemical or structural properties of the peptide-MHC pairs than by data volume. Indeed, the model did not necessarily perform better on MHCs that were abundant in the training data (e.g., DRB-0101 is very abundant yet has a relatively low \(R^2\)). (2) Some MHC interactions are inherently easier to predict. For example, HLA-DPA10201-DPB10101 achieves an \(R^2\) > 0.7. This reinforces the idea that intrinsic properties—or potentially higher-quality experimental data for these specific alleles—are the primary drivers of prediction success.
# Evaluate performance on test data
dnn_model.evaluate(X_test, y_test)Test Results:
- R2Score: 0.5357
- RootMeanSquaredError: 0.1793
- loss: 0.0322
The test RMSE and loss are very close to the training data and even a little better than the validation data, suggesting that the model did not overfit too much.
# Plot scatter plot of predicted vs actual on test data
import matplotlib.pyplot as plt
y_pred = dnn_model.predict(X_test)
y_true = y_test
plt.figure(figsize=(8, 6))
plt.scatter(y_true, y_pred, alpha=0.5)
plt.plot([min(y_true), max(y_true)], [min(y_pred), max(y_pred)], 'k--', lw=2)
plt.xlabel('True Values')
plt.ylabel('Predictions')
plt.title('True Values vs. Predictions')
# Add R-squared on the plot
from sklearn.metrics import r2_score
r2 = r2_score(y_true, y_pred)
plt.text(0.05, 0.95, f'R-squared: {r2:.2f}', transform=plt.gca().transAxes, fontsize=12, verticalalignment='top')
plt.show()
Overall prediction accuracy is good (\(R^2 \approx 0.53\)). However, aggregate metrics can hide specific strengths. Let’s break down performance by MHC type.
We calculate the \(R^2\) score specifically for each MHC allele in the test set (filtering for those with >10 instances).
# Evaluate R-squared of predicted vs actual binding affinity for each MHC type (test data)
y_pred = dnn_model.predict(X_test)
y_true = y_test
# ...code abbreviated for brevity...
Similar to the training set, we can see that prediction accuracy does not correlate with the number of MHC instances, and some MHCs are just easier to predict than others.
For example, looking at HLA-DPA10201-DPB10101:

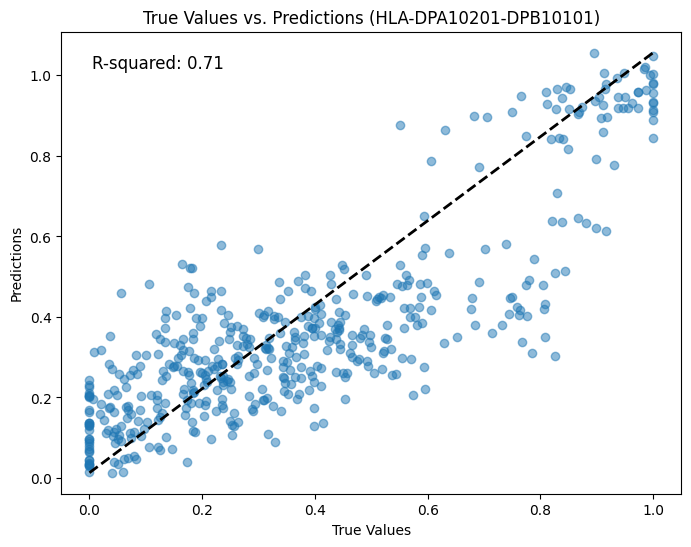

# Plot HLA-DPA10201-DPB10101 and peptide binding predicted vs actual scatter plot
import matplotlib.pyplot as plt
y_pred = dnn_model.predict(X_test)
y_true = y_test
mhc_id = test_me['MHC_ID'].values
target_mhc = 'HLA-DPA10201-DPB10101'
target_index = np.where(mhc_id == target_mhc)[0]
y_pred = y_pred[target_index]
y_true = y_true[target_index]
plt.figure(figsize=(8, 6))
plt.scatter(y_true, y_pred, alpha=0.5)
plt.plot([min(y_true), max(y_true)], [min(y_pred), max(y_pred)], 'k--', lw=2)
plt.xlabel('True Values')
plt.ylabel('Predictions')
plt.title('True Values vs. Predictions (HLA-DPA10201-DPB10101)')
# Add R-squared on the plot
from sklearn.metrics import r2_score
r2 = r2_score(y_true, y_pred)
plt.text(0.05, 0.95, f'R-squared: {r2:.2f}', transform=plt.gca().transAxes, fontsize=12, verticalalignment='top')
plt.show()
For this specific MHC type, the \(R^2\) is 0.71, which is significantly better than the global average. This demonstrates that for certain alleles, the model can reliably identify high-affinity binders (e.g., a predicted affinity cutoff of > 0.6 corresponds well to high actual affinity).
By leveraging ESM2 embeddings and MLP, we built a pipeline to predict peptide-MHC II binding. This exercise showcases the potential of combining LLMs with machine learning to tackle complex biological challenges. These could range from predicting protein-protein interactions and drug-target binding to forecasting drug responses from gene expression data.
